SAMBRAN PROG501
_
Features:
• Supports all ATMEL-AVR MCU’s such as AT90 , ATMEGA , ATTINY , etc.
• One 40-pins ZIF socket to use easier from DIP packages
• USB2.0 high-speed connection
• No power required , powered through USB
• Compatibles with STK500 Protocol
• High speed programming
• External oscillator to choose external clock
• Easy adjust to choose fuse bits and lock bits
• Two parts separate and matching
• Very Small and slim size to easy carry
• Direct connection to computer (no interface cable required)
• Jumper Wires 6 – Female to Male for target programming on Breadboard.
• Reserved MOSI, MISO, RST, SCK, VCC, GND. 6PIN interface, user-freindly connection to the target board.
• Compatibles with “Progisp”, “Khazama AVR Programmer”, “AVRDUDE”, “BASCOM-AVR” and “eXtreme Burner – AVR” software.
• Standard 10-pin ISP Connector and Cable,
• With USB power and target board support target voltage 5V, can be selected through the jumper cap connection
• With 6 wires of male to female jumpers
• With protected power by SMD fuse
• ZIF Socket 40-Pin Narrow
• One 40-pins ZIF socket to use easier from DIP packages
• USB2.0 high-speed connection
• No power required , powered through USB
• Compatibles with STK500 Protocol
• High speed programming
• External oscillator to choose external clock
• Easy adjust to choose fuse bits and lock bits
• Two parts separate and matching
• Very Small and slim size to easy carry
• Direct connection to computer (no interface cable required)
• Jumper Wires 6 – Female to Male for target programming on Breadboard.
• Reserved MOSI, MISO, RST, SCK, VCC, GND. 6PIN interface, user-freindly connection to the target board.
• Compatibles with “Progisp”, “Khazama AVR Programmer”, “AVRDUDE”, “BASCOM-AVR” and “eXtreme Burner – AVR” software.
• Standard 10-pin ISP Connector and Cable,
• With USB power and target board support target voltage 5V, can be selected through the jumper cap connection
• With 6 wires of male to female jumpers
• With protected power by SMD fuse
• ZIF Socket 40-Pin Narrow
_
Introduction:
The PROG501 is a complete programmer system for the AVR Flash microcontroller from Sambran Corporation which is designed and made in two pieces and very small. PROG501 can be directly connected with the computer USB port and this product is a USB in-circuit programmer for Atmel AVR microcontrollers. The hardware consists of an AVR microcontroller and other passive components while the programmer uses firmware-only USB driver. This programmer is based on STK500 open source USBasp design and connects to your computer’s USB port and is quite compact and elegant.
_
Details:

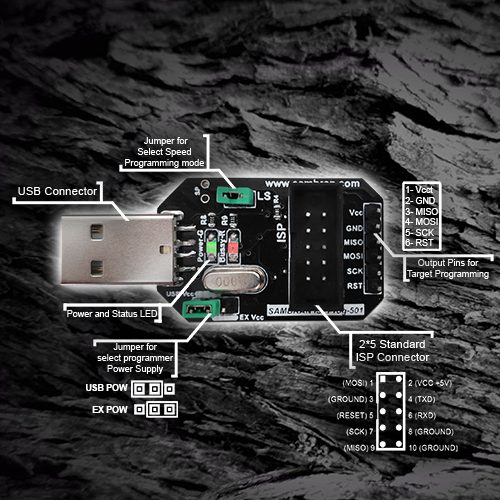

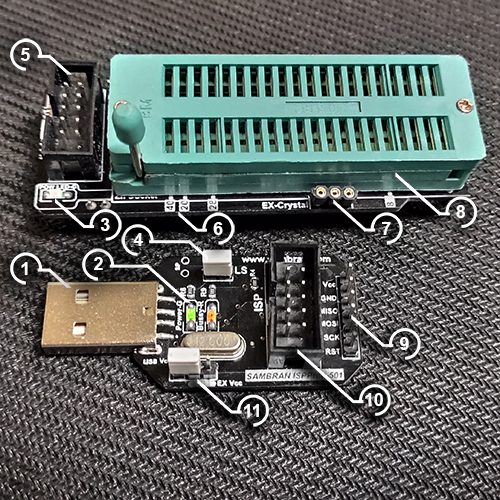

1- USB Connector
2- Power and Status LED
3- Power LED for the correct connection of the interface cable
4- Jumper for Select Low or High Speed Programming mode
5- ISP Connector
6- Target Placement guide
7- External oscillator socket
8- Zif Socket
9- Output Pins for target Programming
10- ISP Connector
11- Jumper for select programmer PS
2- Power and Status LED
3- Power LED for the correct connection of the interface cable
4- Jumper for Select Low or High Speed Programming mode
5- ISP Connector
6- Target Placement guide
7- External oscillator socket
8- Zif Socket
9- Output Pins for target Programming
10- ISP Connector
11- Jumper for select programmer PS
Hardware Details:

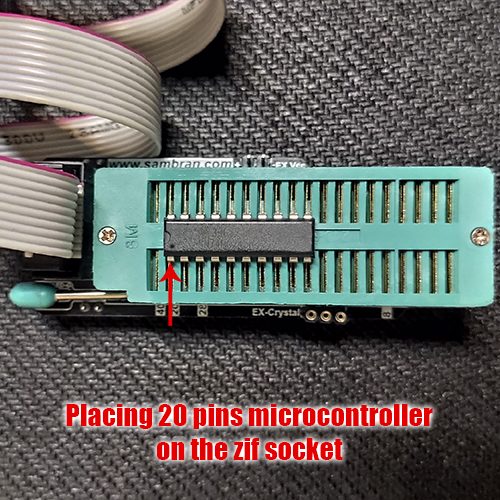

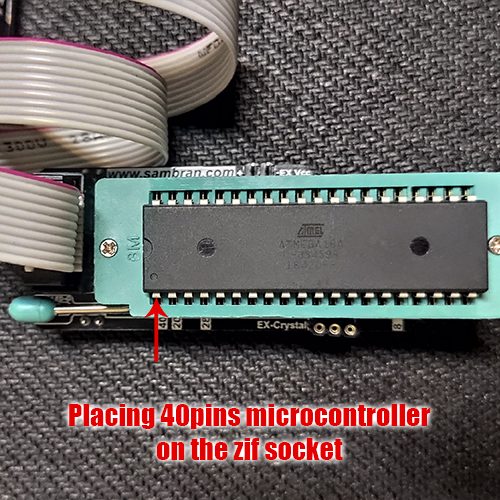

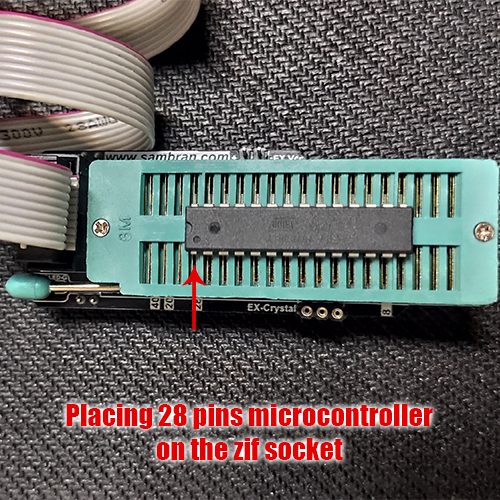

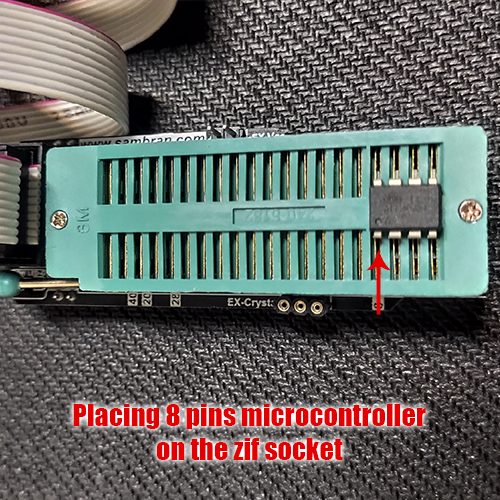

How to put target IC on the zif socket?
Follow pictures:
